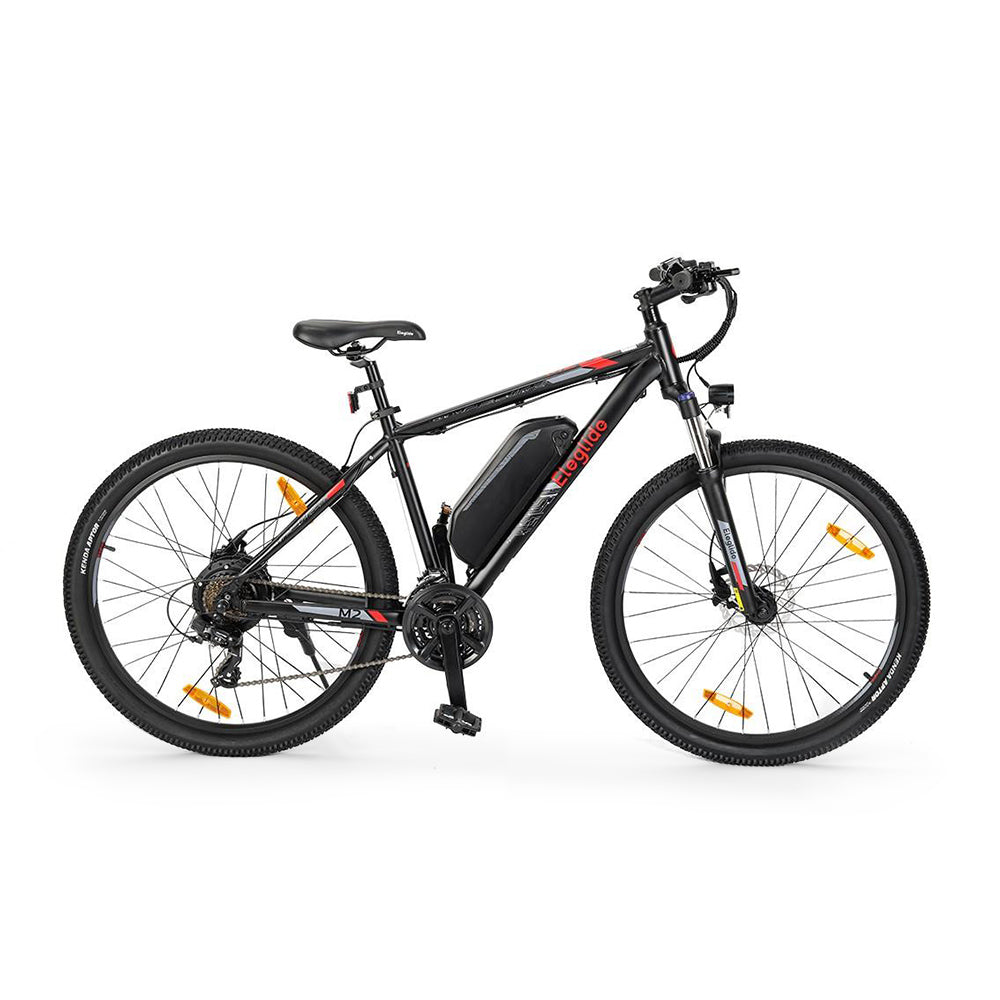

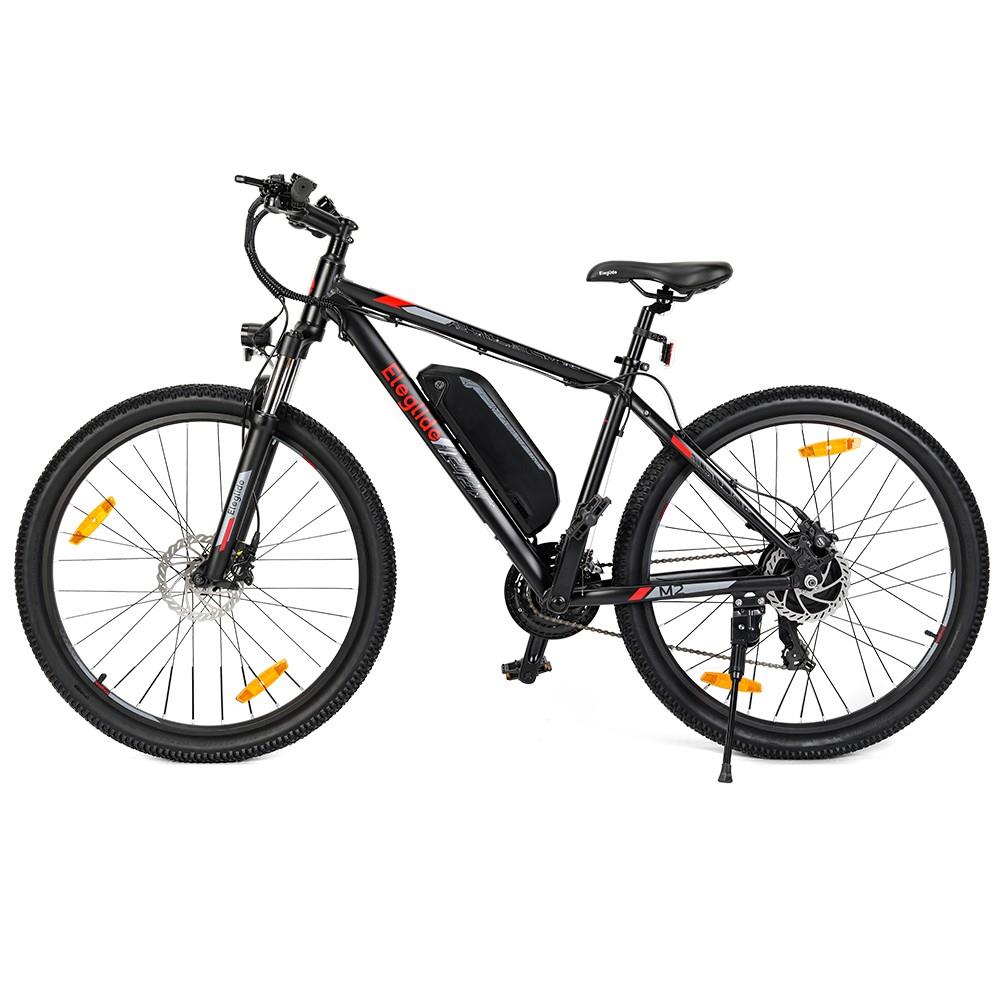

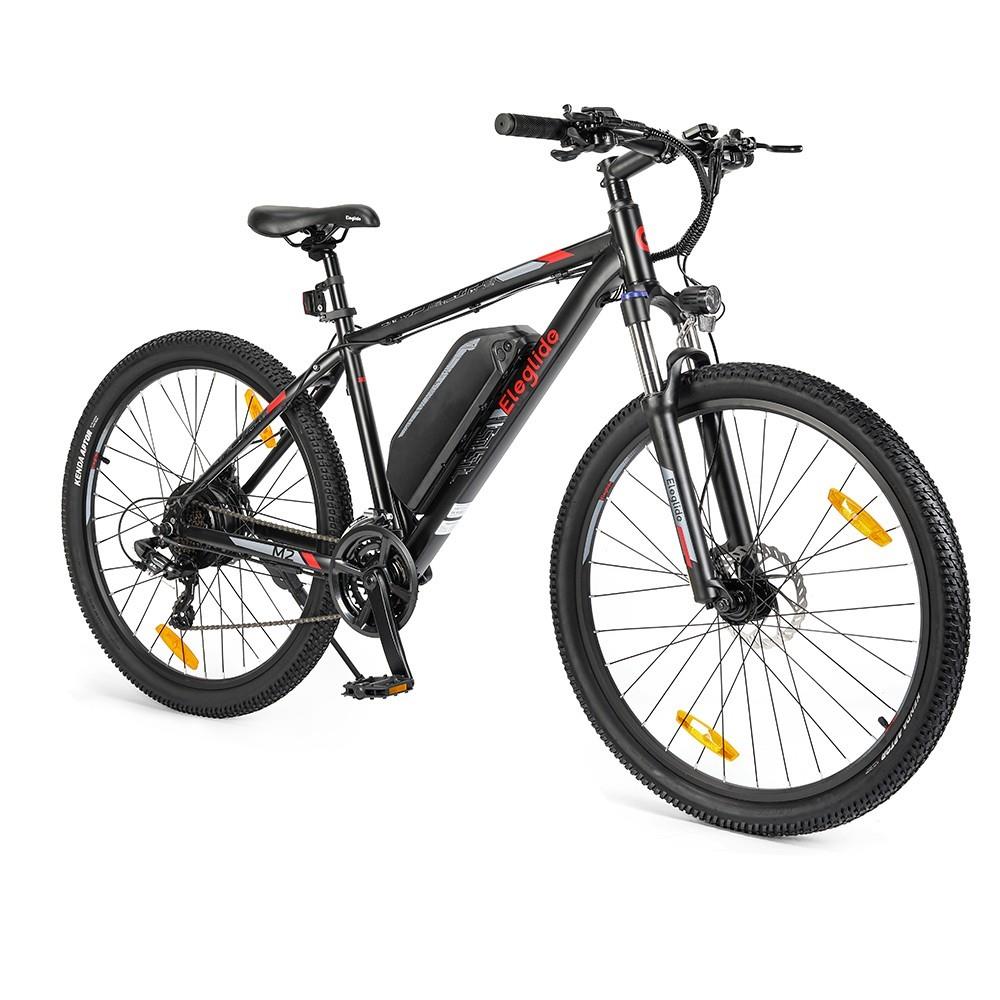

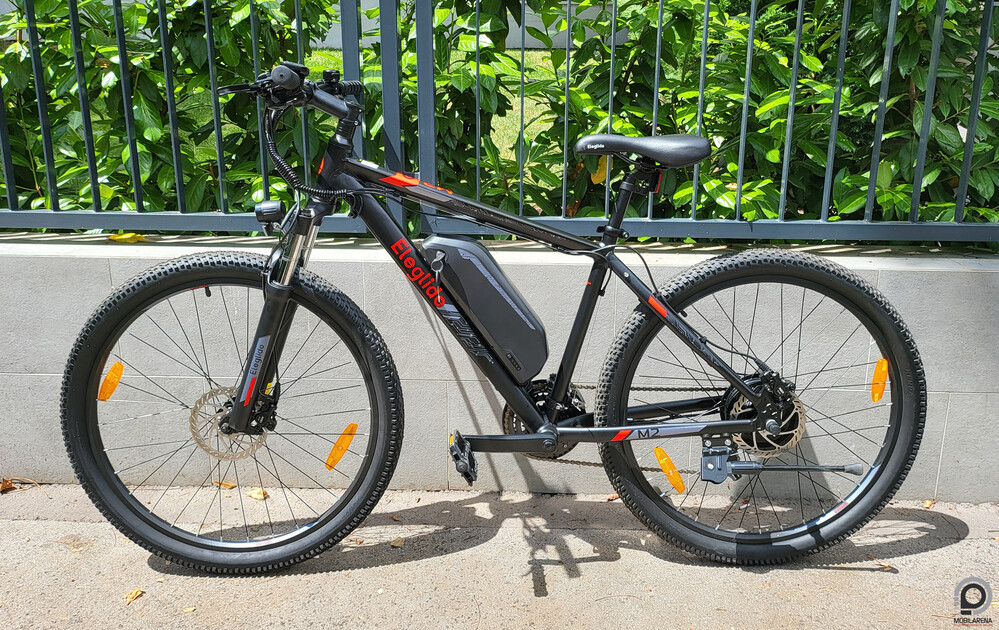

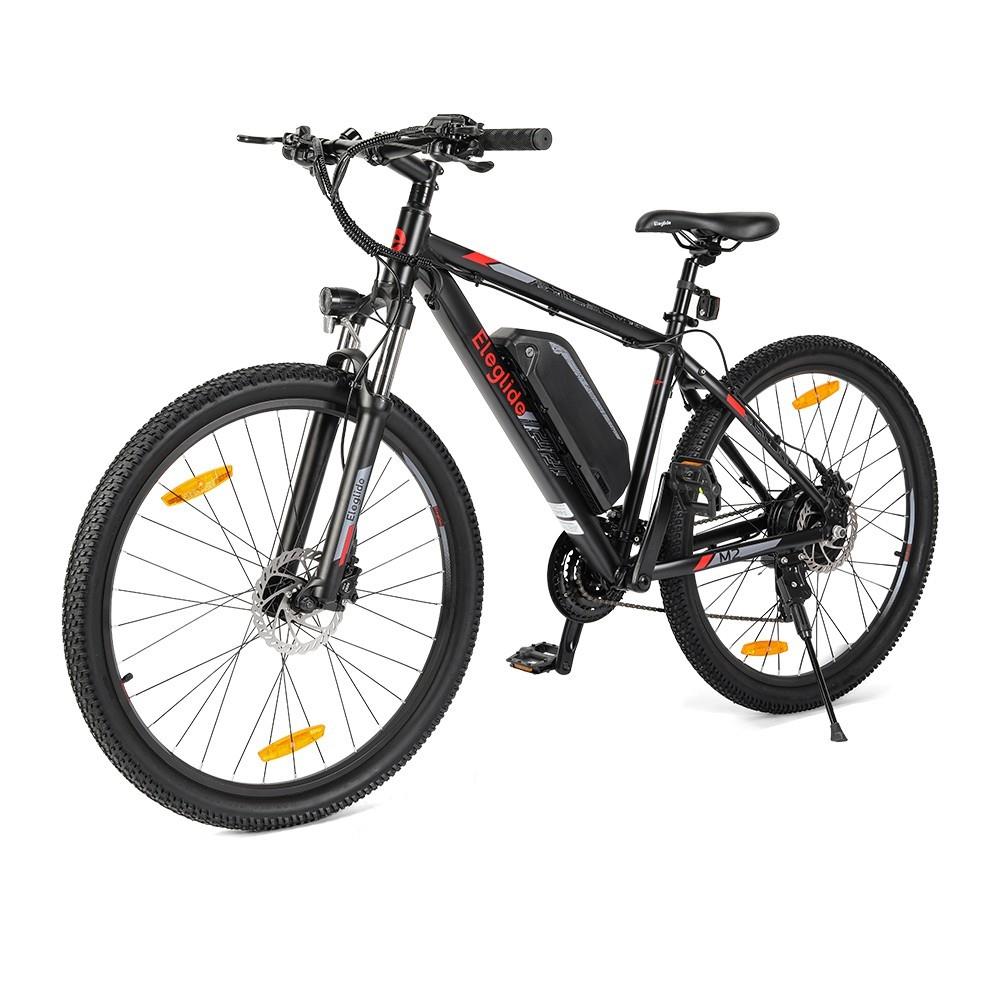

Electric Mountain Bike M2

Specification

General

• Brand: ELEGLIDE
• Type: Mountain Bike
• Model: M2
• Color: Black

Basic Specification

• Net Weight: 22kg
• Unfolded Size: 1800x680x1060mm
• Size of Frame: 27.5"x18"
• Length of Handlebar: 680mm(26.8". without grip covers). 700mm(27.6". with grip covers)

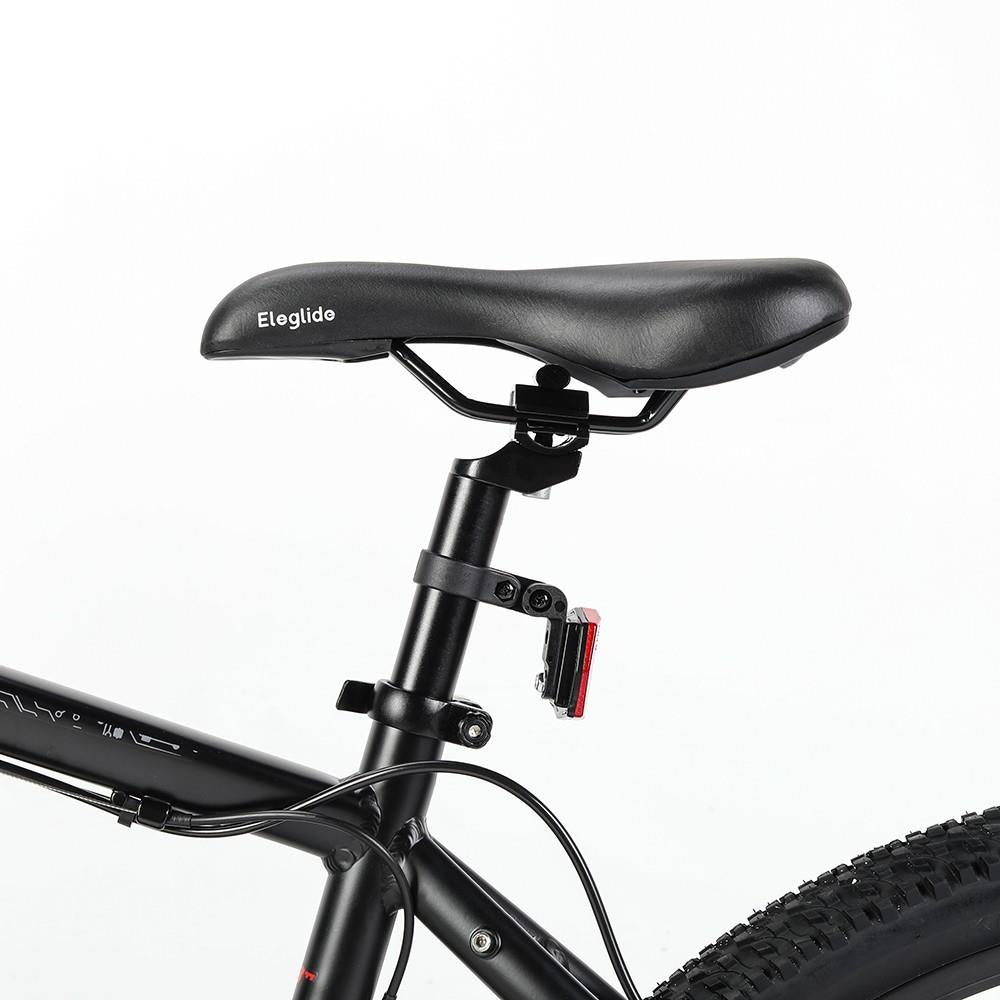

• Height of Saddle (from the ground): 34.3"-41.7"
• Recommended Rider Height: 160-195cm (around 5' 3"-6' 4.8")
• Max Load of Bike: 120 kg
• Cut-off Speed: 25km/h (Can be adjusted to 32km/h)
• Max Range: 125km (Assist Mode)
• Pedal Assist Levels: 12/16/20/23/25 km/h
• Walk Mode: 6km/h
• Waterproof Level: IPX4
• Material: Aluminium Alloy (AL6061)

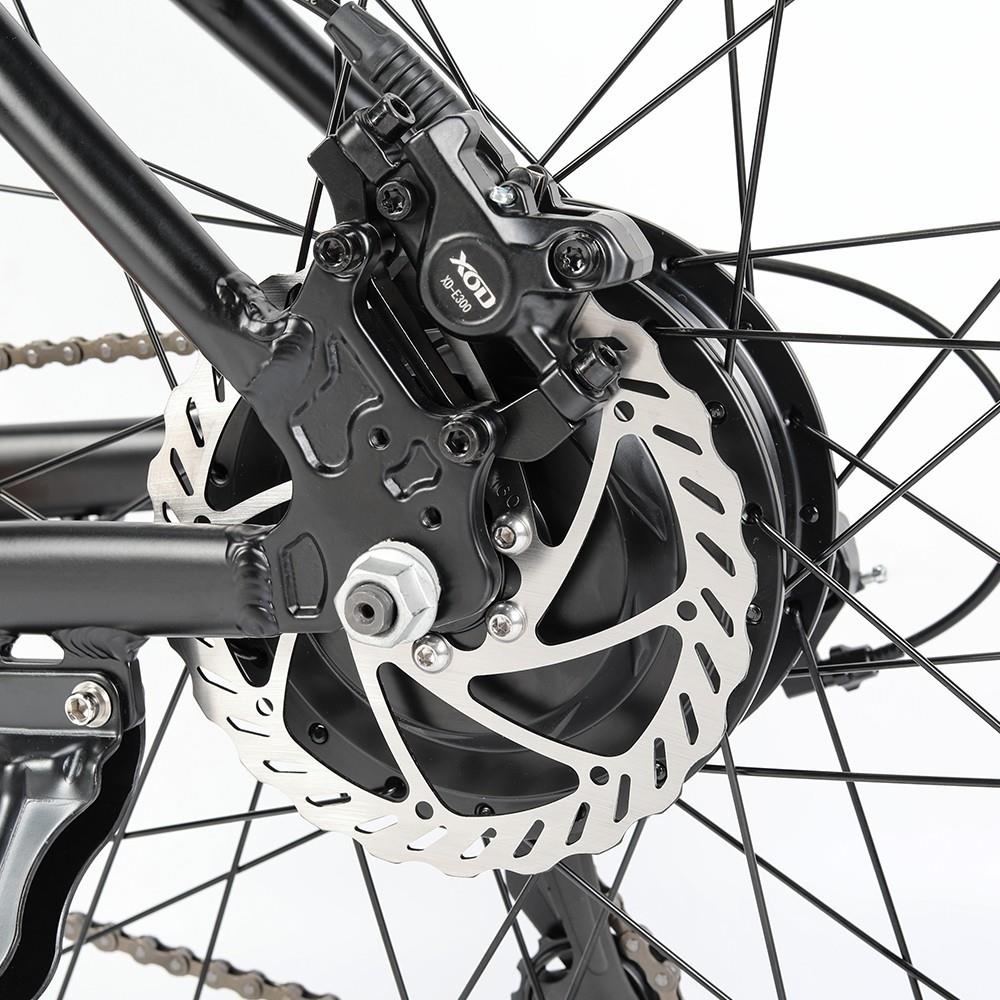

• Braking System: Hydraulic Disc Brakes & Power-off Design

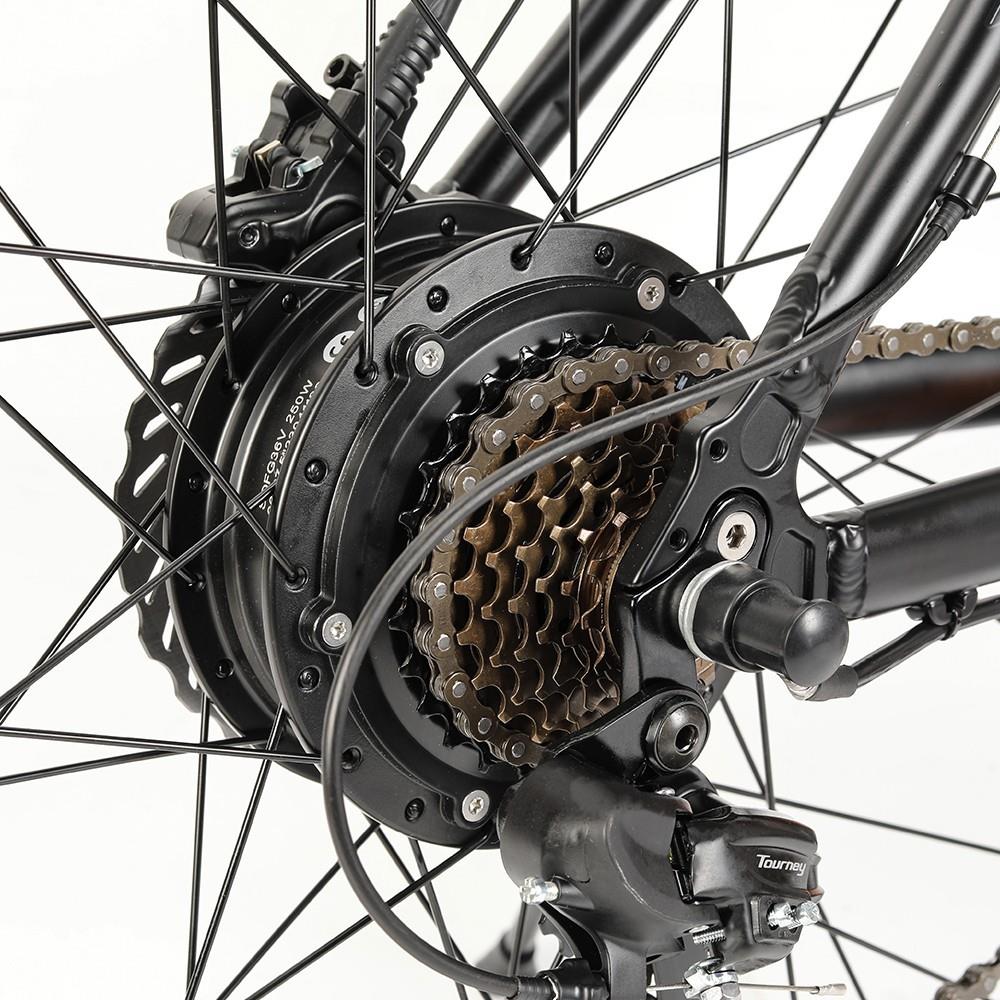

Motor

• Rated Voltage: 36V
• Max Instantaneous Power: 570W
• Max RPM: 250
• Max Output Torque: 55N.M

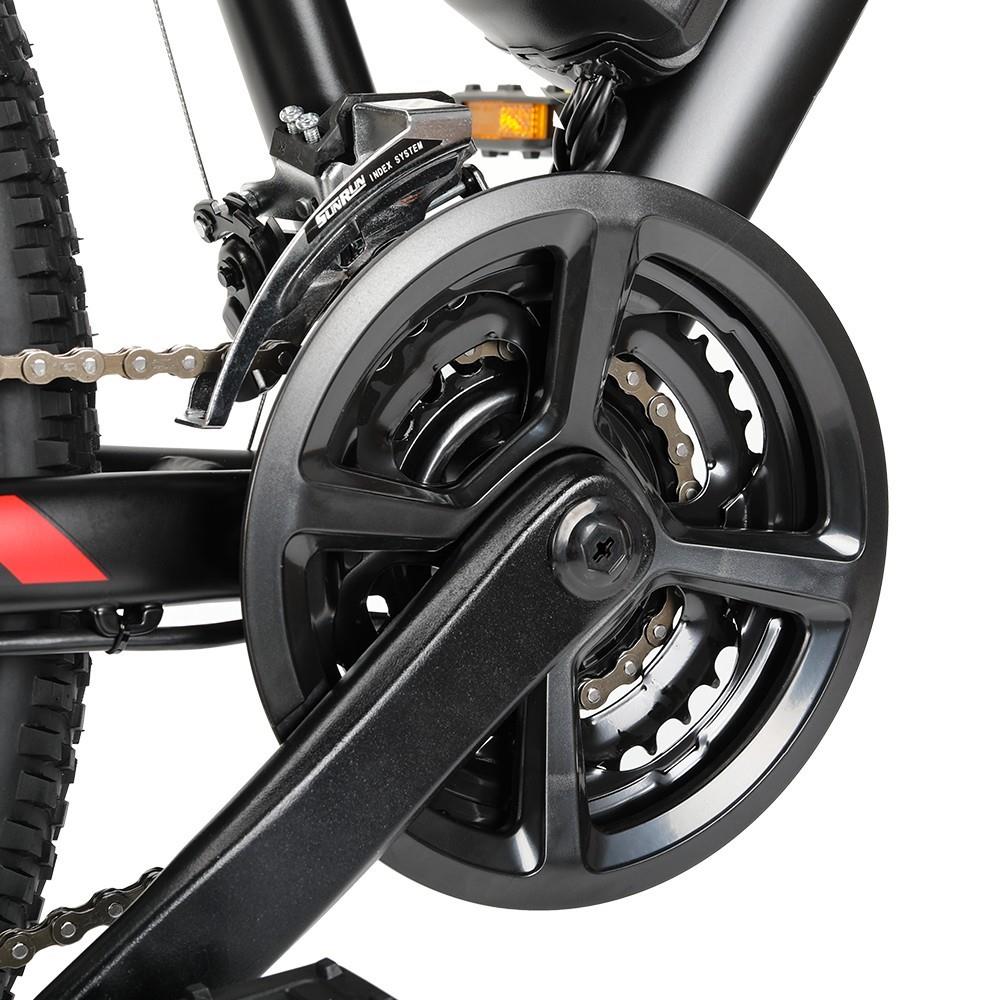

Derailleur

• Brand: Shimano
• Number of Gears: 3 (Front). 8 (Rear)

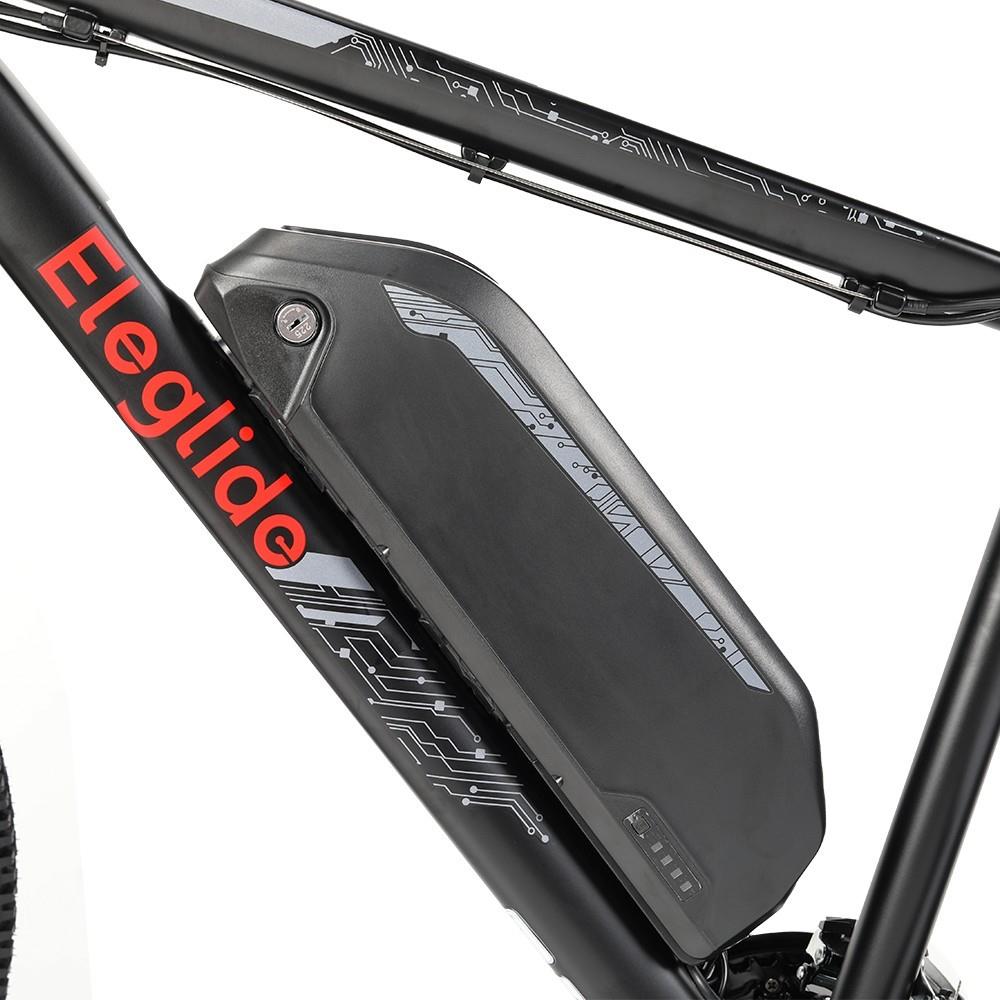

Battery

• Capacity: 15.6Ah
• Voltage: 36V
• Charging Time: 10h
• Power Capacity: 540Wh
• Protection System: Yes

Charger

• Input: 90~264V. ≤2.2A
• Output: 42V. 2A

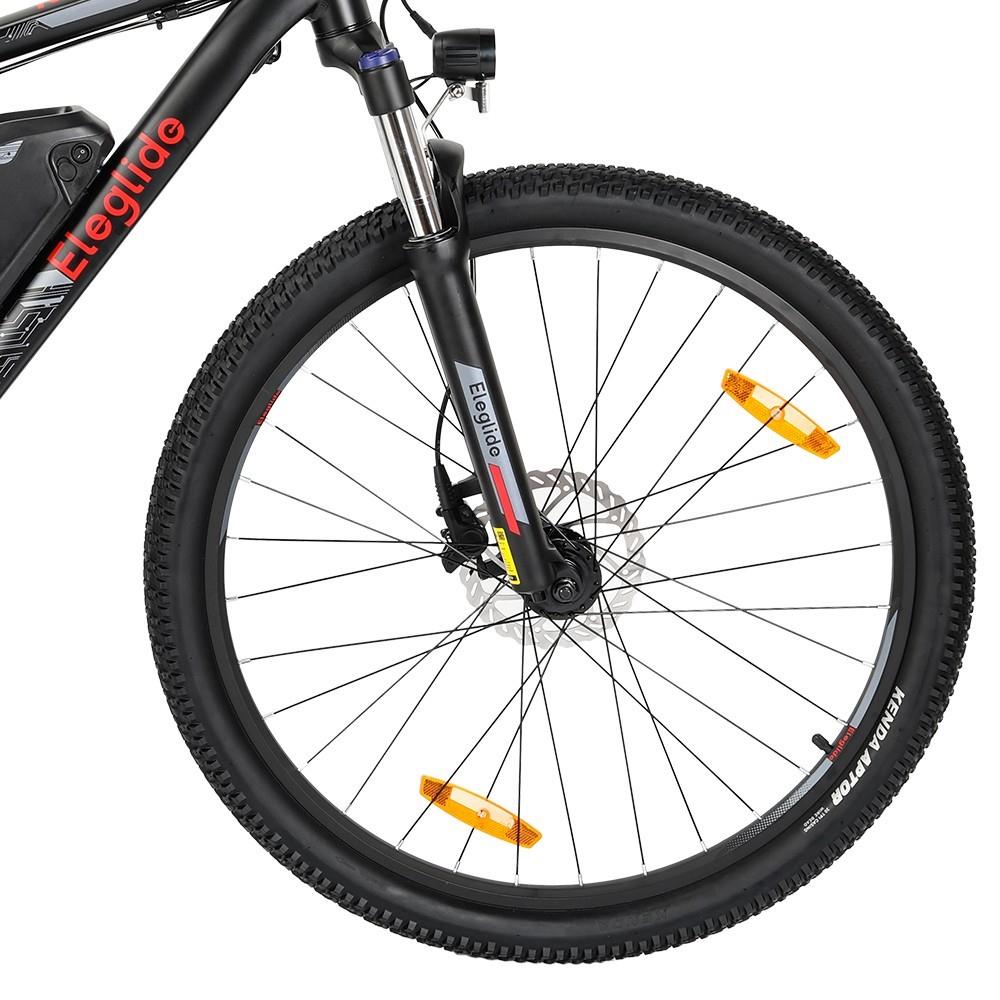

Tires

• Brand: Kenda
• Size: 27.5"x2.35"
• Type: Pneumatic Rubber Tires
• Tire Pressure: 40-65PSI
• Best Tire Pressure: 50PSI (Front). 55PSI (Rear)

Display

• Size: 1.75"
• Type: LCD
• Information: Speed. Battery Level. Trip Distance/Odometer. Assist Level. Push Mode. Light Mark. Error Code. Brake/Malfunction Mark
• Functions: Power on/off. turning light on/off. shifting assist levels. activating walk mode. removing ODO data. setting screen timeout. etc.

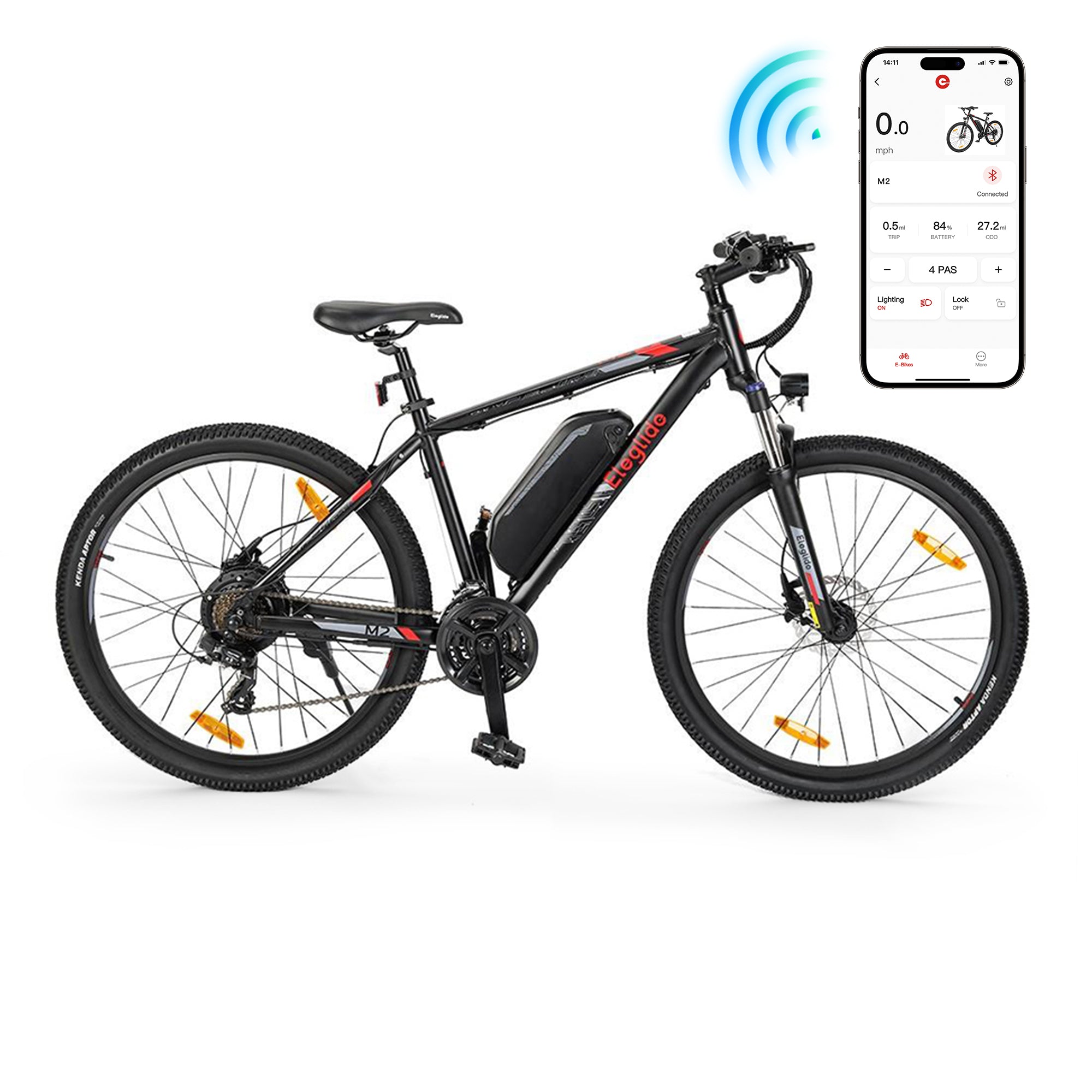

App

• Name: Eleglide
• System Support: iOS (11.0+). Android (5.0+)
• Functions: Turning light on/off. shifting assist levels. locking/unlocking the bike. setting a password. adjusting screen brightness. etc.

Package

• Size: 1480x240x770mm
• Gross Weight: 27.5kg

Package Contents

• 1 x E-Bike
• 1 x User Manual
• 1 x Charger
• 2 x Pedal

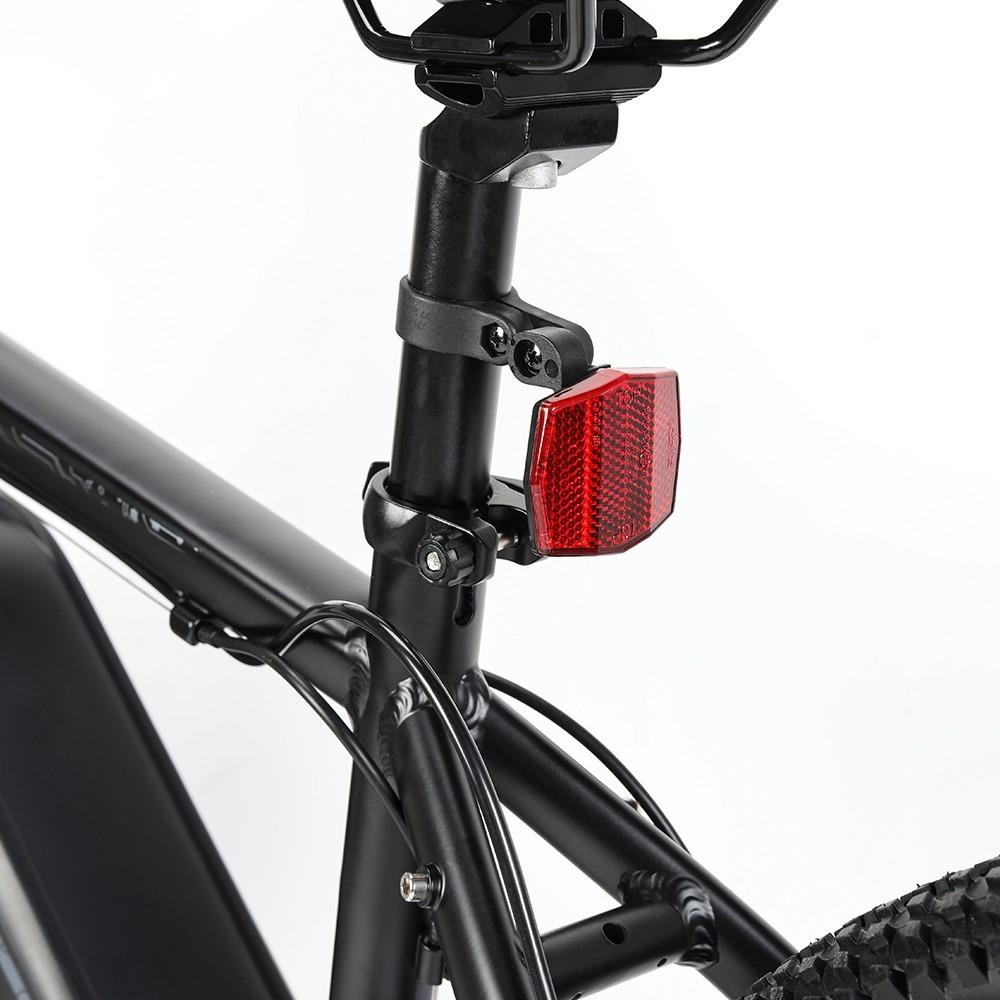

• 1 x Rear Reflector
• 4 x Spoke Reflector

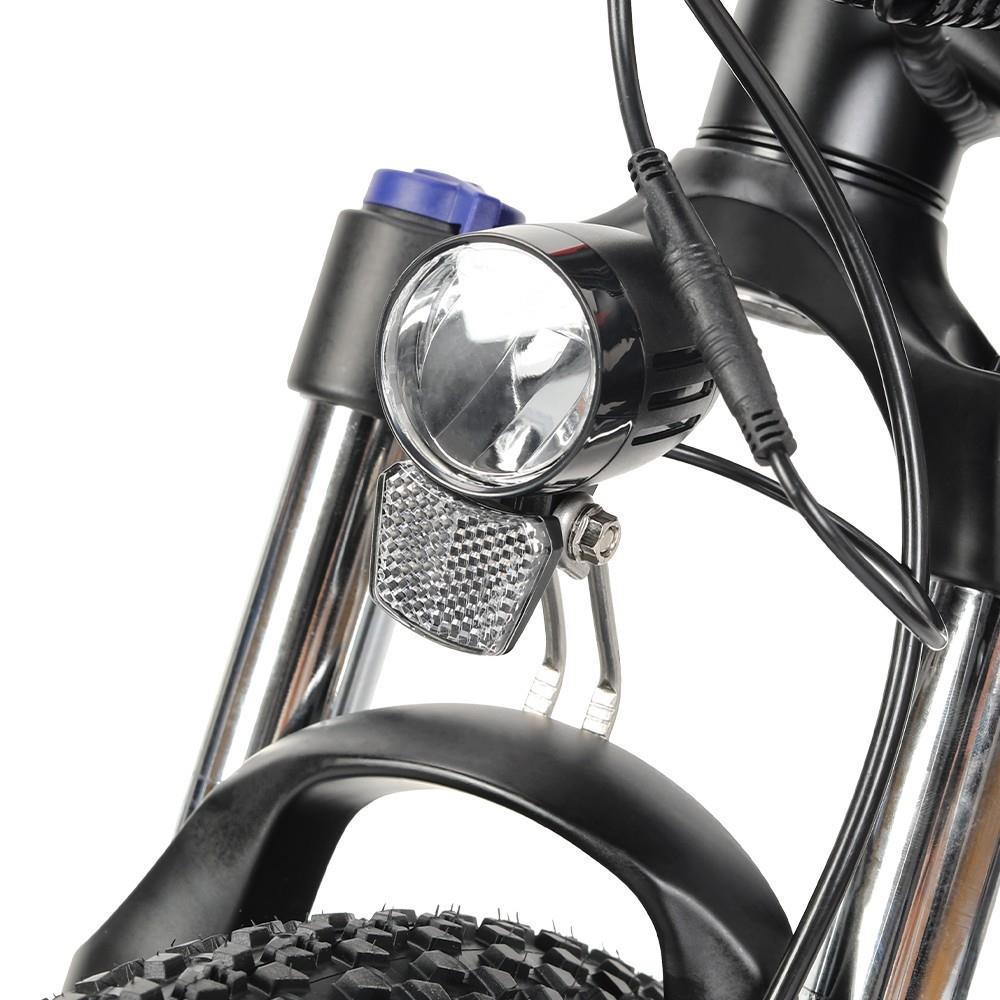

• 1 x Headlight
• 1 x Saddle
• 1 x LCD Display
• 2 x Key
• 1 x Tool Kit
• 1 x Throttle Kit
